Home | Wheels & Castors | Castors | TQZ Series (5100kg) | Polyurethane Vulkollan Tyre

Polyurethane Vulkollan Tyre

  • Range: Wheels & Castors
  • Category:Castors
  • Group:TQZ Series (5100kg)
  • Style: Polyurethane Vulkollan Tyre
Search on complete or part product code

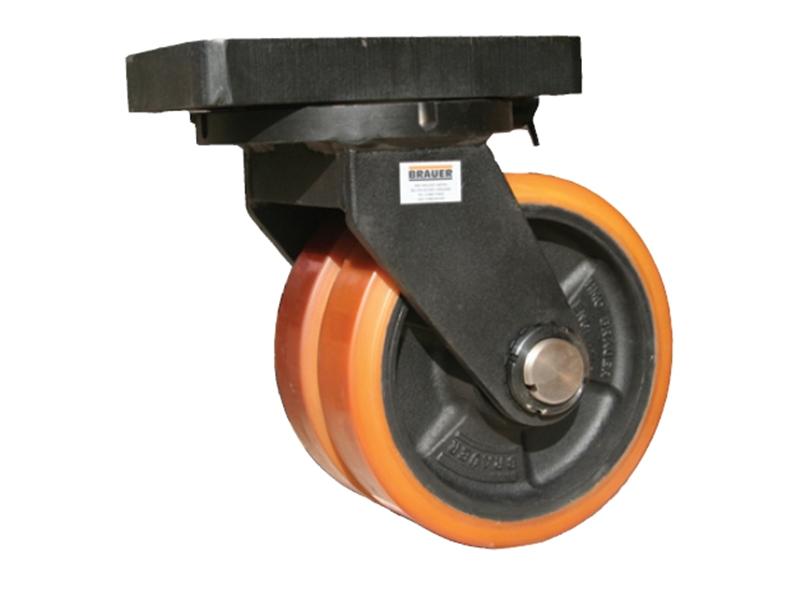

Heavy duty industrial castors fitted with two special Brauer Vulkollan 'Heavithane' Polyurethane 300mm or 250mm diameter by 70mm or 75mm wide, direct bond polyurethane wheels.

The TQZ swivel heavy duty castor has a load rating of 5100kg and the load is limited by the wheels/bearings to 4600kg for the 300mm diameter wheels and 4000kg for the 250mm diameter wheels. For higher loads consider using different wheels/bearings.

The TQZ range of castors has directional lock fitted as standard.

 Polyurethane Vulkollan Tyre
 Polyurethane Vulkollan Tyre

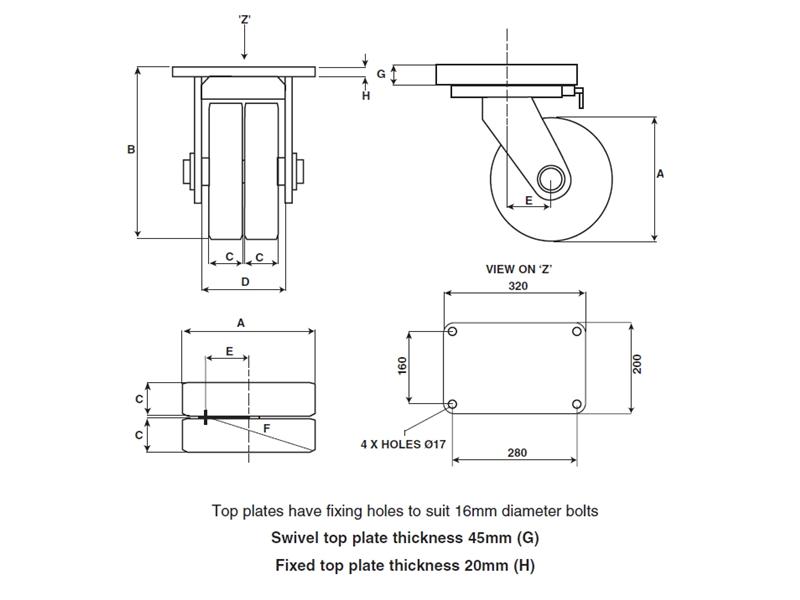

DrawingsPDF
Part No. A B C D E F Load Rating Fixed/Swivel
TQZS/H250/70TB 250 355 70 190 85 222 4000kg Swivel
TQZS/H300/75TB 300 405 75 190 100 262 4600kg Swivel
TQZF/H250/70TB 250 355 70 190 4000kg Fixed
TQZF/H300/75TB 300 405 75 190 4600kg Fixed

Various wheel options available
