Steel Channel Wheels - Radius Tread

  • Range: Wheels & Castors
  • Category:Heavy Duty Industrial Wheels
  • Group:Channel Wheels - Radius Tread
  • Style:Steel Channel Wheels - Radius Tread
Search on complete or part product code

Brauer have been the first to incorporate into the Industrial wheels product group, Steel I-beam and channel wheel and axle assemblies specifically designed to run in and fit within  standard sections of steel I-beam and channel. The special radius tread accommodates the angle of the steel beam section allowing smooth industrial wheel running. The special radius found in the Brauer SSFR industrial wheels also mitigates wear and aides tracking charactoristics of the complete assemble. Brauer is the leader in this field of I-beam and channel industrial wheel technology.

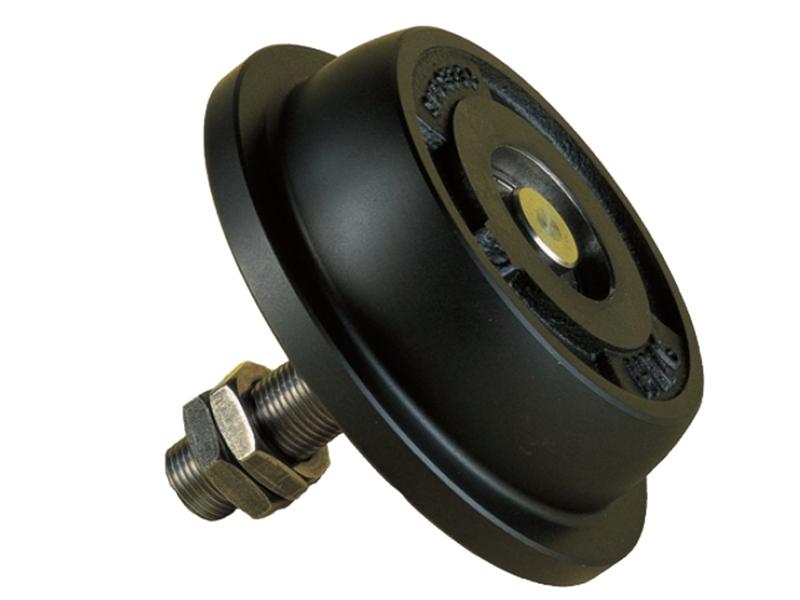

Steel Channel Wheels - Radius Tread
Steel Channel Wheels - Radius Tread

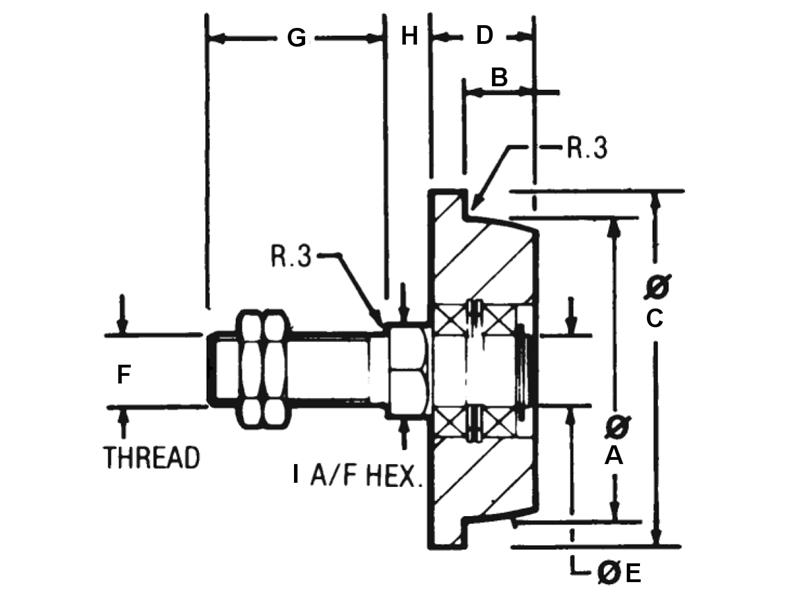

DrawingsPDFCAD Download
Part No. A B C D E F G H I Load Kg Weight Kg
SSFR55/25/BJA 55 25 70 35 12 M16x1.5 40 10 22 160 1
SSFR85/25/BJA 85 25 100 35 20 M24x2 52 15 30 370 2.5
SSFR105/25/BJA 105 25 125 35 25 M24x2 62 15 32 700 4
SSFR133/35/BJA 133 35 160 47 25 M30x2 63 18 36 1000 7
SSFR175/35/BJA 175 35 200 50 30 M36x3 73 20 46 1500 11.5

Other bore sizes and types available on request, including imperial
