Home | Standard Parts | Cam Levers | Plastic Handle | Steel

Steel

  • Range:Standard Parts
  • Category:Cam Levers
  • Group:Plastic Handle
  • Style:Steel
Search on complete or part product code

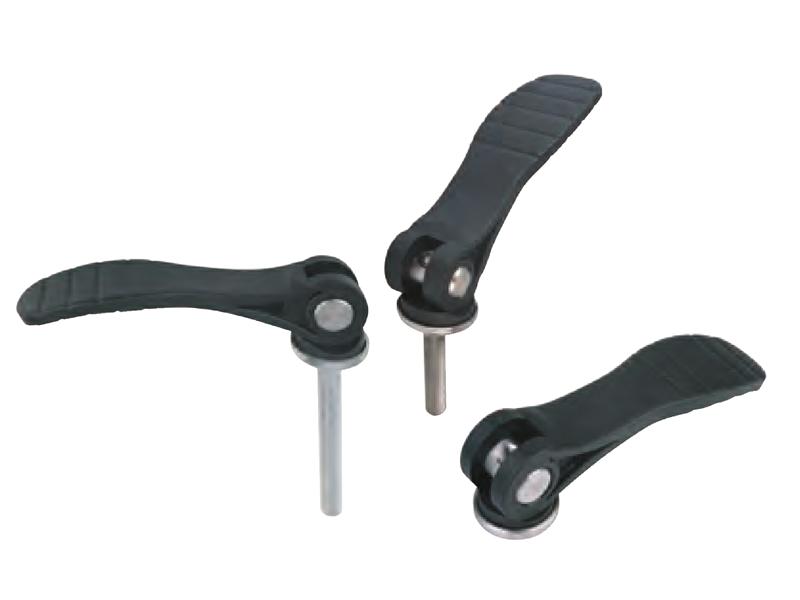

Steel
Steel

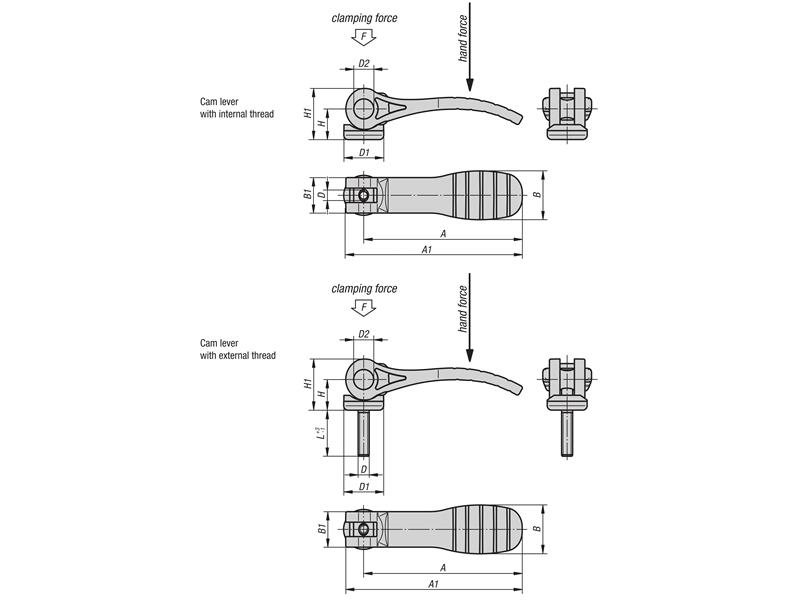

DrawingsPDF
Part No. D D1 D2 B B1 H H1 A A1 Travel Clamping force F(Kn) Hand force (N)
K0646.1521105 M5 18.1 9 22 16 14 23.4 71.5 79.6 1.15 2.5 125 Show Options
K0646.1521106 M6 18.1 9 22 16 14 23.4 71.5 79.6 1.15 2.5 125 Show Options
K0646.2521108 M8 27.1 11 33 24.2 16.2 27.7 100 110 1.5 5 170 Show Options
K0646.2521110 M10 27.1 11 33 24.2 16.2 27.7 100 110 1.5 5 170 Show Options
