Home | Wheels & Castors | Heavy Duty Industrial Wheels | Steel Wheels | V Grooved

V Grooved

  • Range: Wheels & Castors
  • Category:Heavy Duty Industrial Wheels
  • Group:Steel Wheels
  • Style:V Grooved
Search on complete or part product code

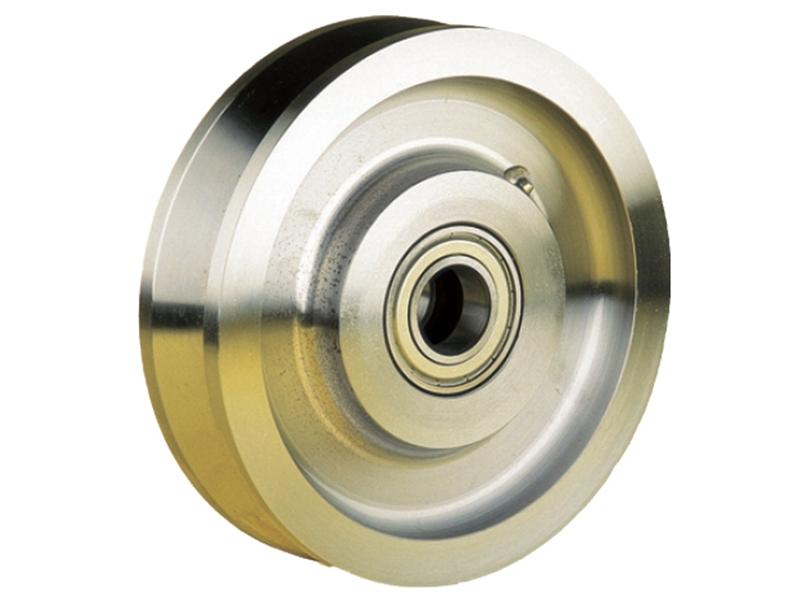

Steel V-Groove rail wheels are normally used when simplicity of rail provision is the only course available. Paired on a single axle the steel V-Groove wheels both supports the load and give rail wheel guidance.

Heavy duty wheels,Industrial  wheels and heavy duty rail wheels are synonymous with Brauer, using the very best high grade steels, to ensure safety and load performance over life times of the project. Brauer offers the widest choice available for diameter, load and bore preference.

Brauer will also work with the customer to manufacture to the customers exact design if need be. Such customer flexibility keeps Brauer the number one for industrial wheel and castor supply.

V Grooved
V Grooved

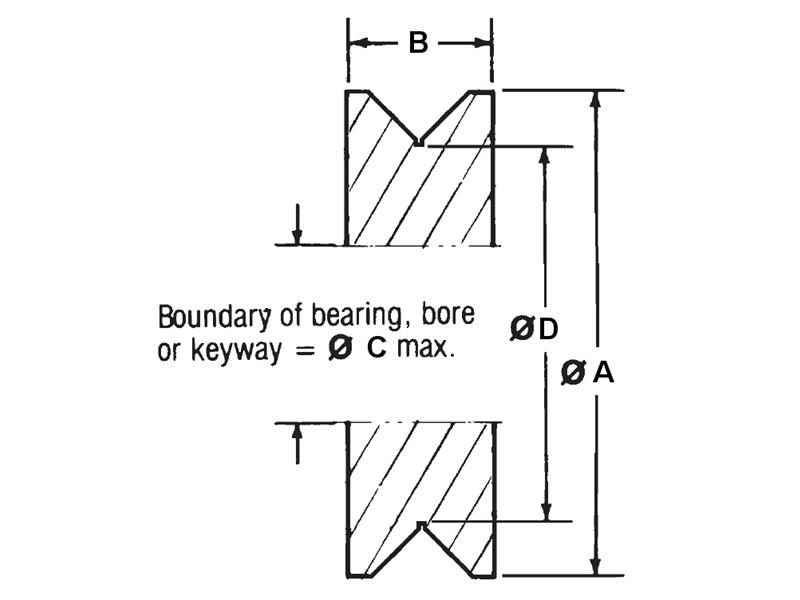

DrawingsPDFCAD Download
Part No. A B C D Load Kg Weight Kg
SVT75/35 75 35 30 50 800 1
SVT100/40 100 40 50 75 1100 2
SVT125/40 125 40 75 100 1500 3.4
SVT150/45 150 45 100 115 2200 5.2
SVT200/50 200 50 100 165 3000 11
SVT250/60 250 60 125 207 4750 23
SVT300/70 300 70 150 246 7100 38

Other bore sizes and types available on request, including imperial
