Home | Wheels & Castors | Heavy Duty Industrial Wheels | Cast Iron Wheels | Cast Iron Double Flanged | CDF130/40

CDF130/40 Variants

  • Range: Wheels & Castors
  • Category:Heavy Duty Industrial Wheels
  • Group:Cast Iron Wheels
  • Style:Cast Iron Double Flanged
Search on complete or part product code
CDF130/40

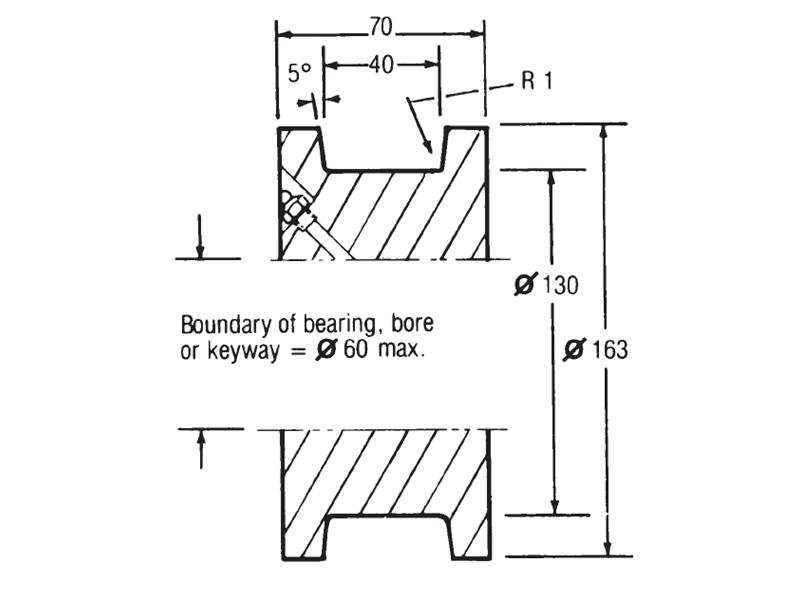

DrawingsPDF

Product Variants

Part No. Bore Size (mm) Bore Type Load Rating
CDF130/40/PBM25 25 Plain Bore 650Kg
CDF130/40/KM25 25 Keyway 650Kg
CDF130/40/BJM25 25 Ball Bearing 650Kg
CDF130/40/PBM30 30 Plain Bore 650Kg
CDF130/40/KM30 30 Keyway 650Kg
CDF130/40/BJM30 30 Ball Bearing 650Kg
CDF130/40/PBM35 35 Plain Bore 650Kg
CDF130/40/KM35 35 Keyway 650Kg
CDF130/40/BJM35 35 Ball Bearing 650Kg

Product Details

Part No. A B C D E F Load Kg Weight Kg
CDF130/40 130 40 60 163 - 70 650 8 Show Variants

Other bore sizes and types available on request, including imperial
