Cast Iron Double Flanged

  • Range: Wheels & Castors
  • Category:Heavy Duty Industrial Wheels
  • Group:Cast Iron Wheels
  • Style:Cast Iron Double Flanged
Search on complete or part product code

Heavy duty wheels and heavy duty rail wheels are synonymous with Brauer, using the very best high grade cast iron, to ensure safety and load performance over life times of the project. Brauer offers the widest choice available for diameter, load, bore preference and has the most experience in this field when assisting a customers own design needs.

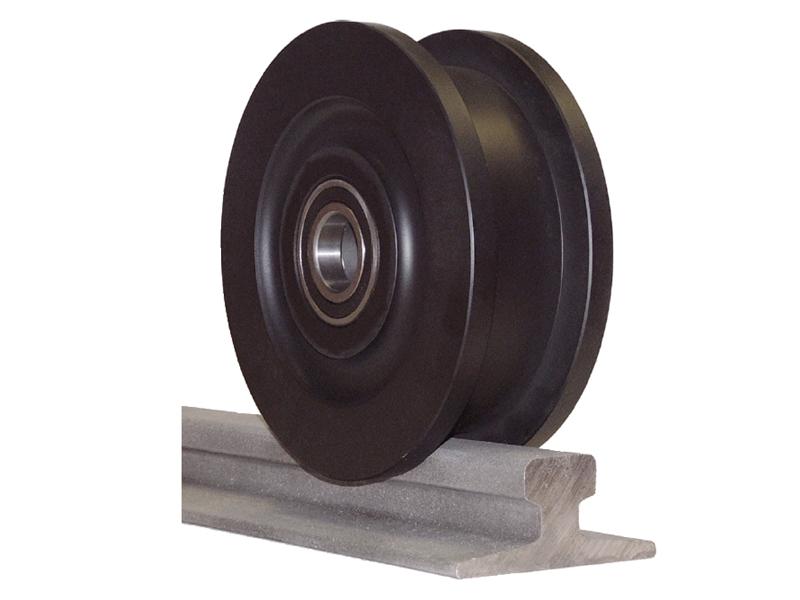

Cast Iron Double Flanged
Cast Iron Double Flanged

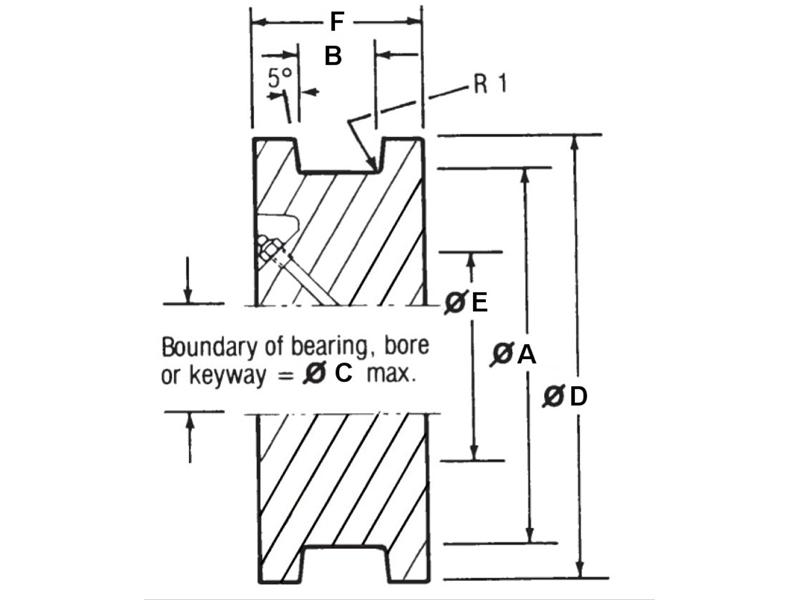

DrawingsPDFCAD Download
Part No. A B C D E F Load Kg Weight Kg
CDF130/40 130 40 60 163 - 70 650 8
CDF150/50 150 50 60 185 - 80 1000 12
CDF200/45 200 45 80 235 110 80 1200 16
CDF200/55 200 55 80 235 110 90 1450 18
CDF250/50 250 50 70 285 100 80 1650 21
CDF300/60 300 60 75 345 105 100 2300 32

Other bore sizes and types available on request, including imperial
