Home | Wheels & Castors | Heavy Duty Industrial Wheels | Cast Iron Wheels | Cast Iron Double Flanged | CDF200/45

CDF200/45 Variants

  • Range: Wheels & Castors
  • Category:Heavy Duty Industrial Wheels
  • Group:Cast Iron Wheels
  • Style:Cast Iron Double Flanged
Search on complete or part product code
CDF200/45

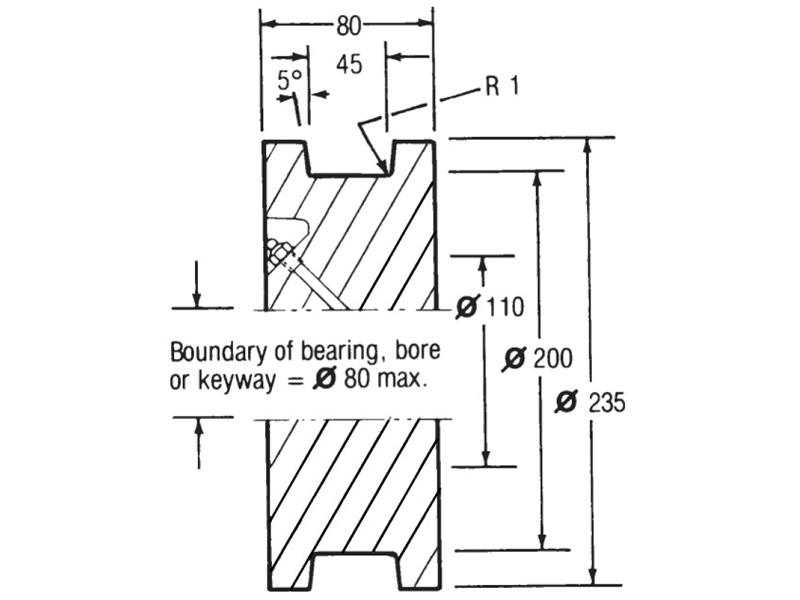

DrawingsPDF

Product Variants

Part No. Bore Size (mm) Bore Type Load Rating
CDF200/45/PBM30 30 Plain Bore 1200Kg
CDF200/45/KM30 30 Keyway 1200Kg
CDF200/45/PBM35 35 Plain Bore 1200Kg
CDF200/45/KM35 35 Keyway 1200Kg
CDF200/45/BJM35 35 Ball Bearing 1200Kg
CDF200/45/PBM40 40 Plain Bore 1200Kg
CDF200/45/KM40 40 Keyway 1200Kg
CDF200/45/BJM40 40 Ball Bearing 1200Kg

Product Details

Part No. A B C D E F Load Kg Weight Kg
CDF200/45 200 45 80 235 110 80 1200 16 Show Variants

Other bore sizes and types available on request, including imperial
