Home | Wheels & Castors | Heavy Duty Industrial Wheels | Cast Iron Wheels | Cast Iron Double Flanged | CDF200/55

CDF200/55 Variants

  • Range: Wheels & Castors
  • Category:Heavy Duty Industrial Wheels
  • Group:Cast Iron Wheels
  • Style:Cast Iron Double Flanged
Search on complete or part product code
CDF200/55

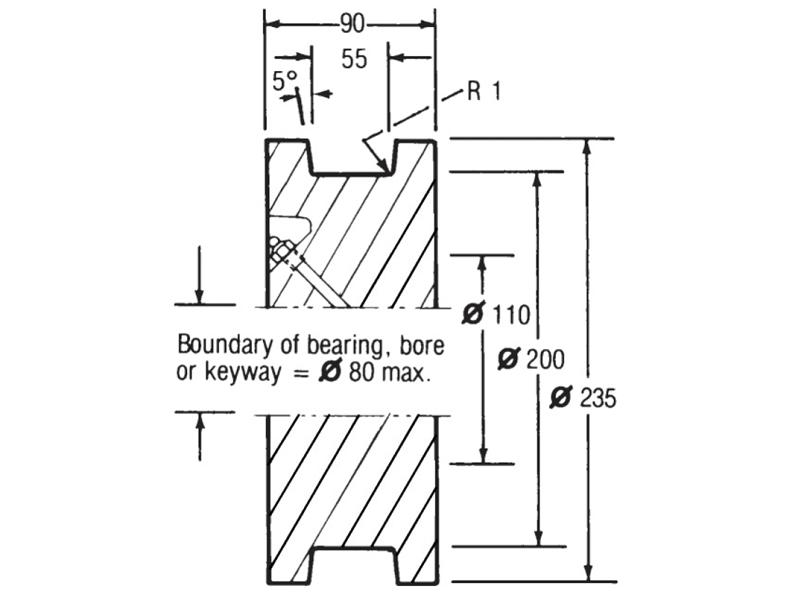

DrawingsPDF

Product Variants

Part No. Bore Size (mm) Bore Type Load Rating
CDF200/55/PBM30 30 Plain Bore 1450Kg
CDF200/55/KM30 30 Keyway 1450Kg
CDF200/55/PBM35 35 Plain Bore 1450Kg
CDF200/55/KM35 35 Keyway 1450Kg
CDF200/55/BJM35 35 Ball Bearing 1450Kg
CDF200/55/PBM40 40 Plain Bore 1450Kg
CDF200/55/KM40 40 Keyway 1450Kg
CDF200/55/BJM40 40 Ball Bearing 1450Kg

Product Details

Part No. A B C D E F Load Kg Weight Kg
CDF200/55 200 55 80 235 110 90 1450 18 Show Variants

Other bore sizes and types available on request, including imperial
