Home | Wheels & Castors | Heavy Duty Industrial Wheels | Cast Iron Wheels | Cast Iron Double Flanged | CDF250/50

CDF250/50 Variants

  • Range: Wheels & Castors
  • Category:Heavy Duty Industrial Wheels
  • Group:Cast Iron Wheels
  • Style:Cast Iron Double Flanged
Search on complete or part product code
CDF250/50

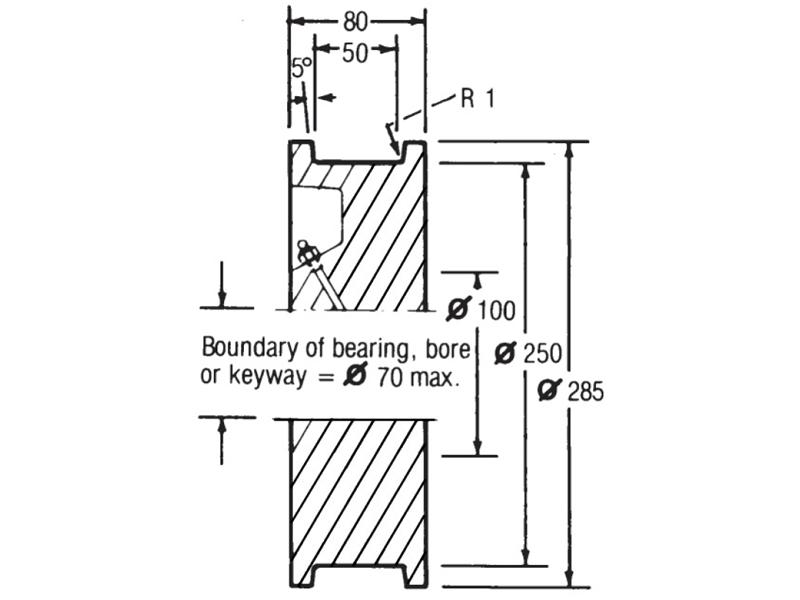

DrawingsPDF

Product Variants

Part No. Bore Size (mm) Bore Type Load Rating
CDF250/50/PBM35 35 Plain Bore 1650Kg
CDF250/50/KM35 35 Keyway 1650Kg
CDF250/50/BJM35 35 Ball Bearing 1650Kg
CDF250/50/PBM40 40 Plain Bore 1650Kg
CDF250/50/KM40 40 Keyway 1650Kg
CDF250/50/BJM40 40 Ball Bearing 1650Kg

Product Details

Part No. A B C D E F Load Kg Weight Kg
CDF250/50 250 50 70 285 100 80 1650 21 Show Variants

Other bore sizes and types available on request, including imperial
