Home | Wheels & Castors | Heavy Duty Industrial Wheels | Cast Iron Wheels | Cast Iron Double Flanged | CDF300/60

CDF300/60 Variants

  • Range: Wheels & Castors
  • Category:Heavy Duty Industrial Wheels
  • Group:Cast Iron Wheels
  • Style:Cast Iron Double Flanged
Search on complete or part product code
CDF300/60

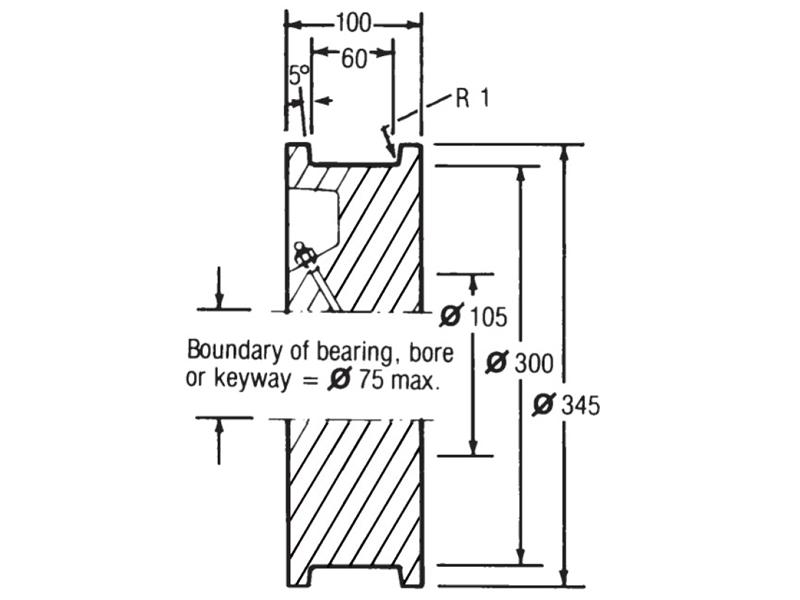

DrawingsPDF

Product Variants

Part No. Bore Size (mm) Bore Type Load Rating
CDF300/60/PBM40 40 Plain Bore 2300Kg
CDF300/60/BJM40 40 Ball Bearing 2300Kg
CDF300/60/PBM50 50 Plain Bore 2300Kg
CDF300/60/KM40 40 Keyway 2300Kg
CDF300/60/KM50 50 Keyway 2300Kg

Product Details

Part No. A B C D E F Load Kg Weight Kg
CDF300/60 300 60 75 345 105 100 2300 32 Show Variants

Other bore sizes and types available on request, including imperial
